OROSHI compressor

Versatile ROSS-inspired compressor in nanbu-tekki inclosure.

• OROSHI SPECS
• Power supply: 2.1mm center minus 9V adapter
• Weight: about 580g

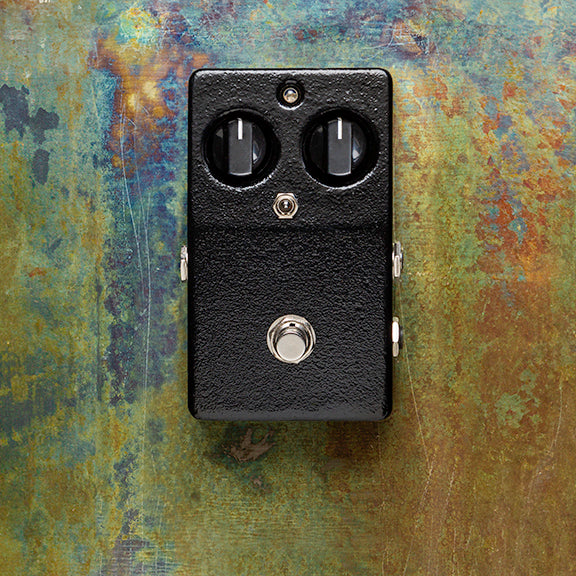

• Controls: Sustain/Volume/3-Way Toggle Switch (adjusts low end compression)
• Upper: Lightest low end, narrower range of compression
• Middle: Normal operation
• Lower: Wider compression range, strong low end presence. Compression hits the low frequencies fastest.
• Input impedance: ~470kΩ
• Output impedance: >10kΩ
• Operating current: 8mA (DC9V)
• True bypass: NO
